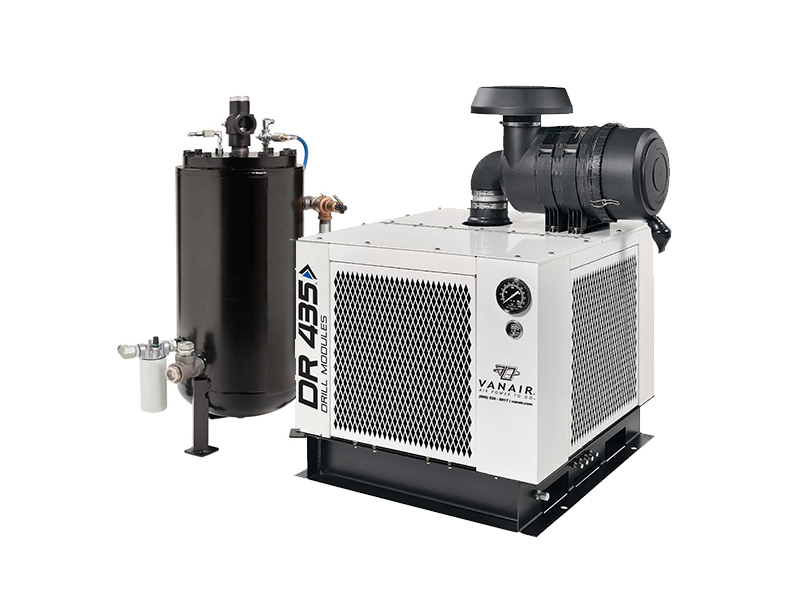

DR435 - Drill Modules COTIZAR 435 CFM @ 200 PSI to Get the Job DoneDelivering 100 or 200 PSI with a Single-Stage Compressor System Featuring a made in the USA , field-proven Sullair® rotary screw air end, small foot print and a remote separator tank for flexible mounting and easy maintenance, the DR 435 delivers the power, performance and durability that you need on the job site. Literature Specifications Special Features Options Hydraulic System Requirements Parts Download Literature Download Drill Compressor Modules Literature Bid Specifications - DR435 Warranty Air Compressor DR435 Rated Capacity 435 CFM (12.32 m3/min) Pressure Up to 100 PSI (17.3 Bar) RPM Input 1800 RPM Input BHP Required Up to 111 HP (83 kW) Tank Discharge (SAE) 2 In. NPT Physical Specifications DR435 Compressor Module Weights 1035 Lbs. Separator Tank Weights 330 Lbs. Fan Power Requirements DR435 Fan Drive Method Compressor Input Shaft Compressor Dimensions with fittings (In.)– 41.5 L x 36 W x 32 H* Separator Tank Dimensions with fittings (In.)– 18 Dia. x 41.0 H Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements. PERFORMANCE 435 CFM and 200 PSI Industry Leading Rotary Screw Air Compressor Compact Design Easy to Operate and Maintain Simple Controls and Piping Built for Harsh Environments Made in the USA AIR COMPRESSOR Rotary Screw Air Compressor Single-Stage Field Proven Performance Recirculating Valve for Noise Reduction Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings DISCHARGE TANK Vertical Design for Smaller Footprint and Angle of Operation In-Tank Coalescer for Longevity Minimum Pressure Valve Pressure Relief Valve Oil Scavenge Sight Glass Coalescer Restriction Indicator AIR-TO-OIL COOLER Ambient Operating Range of -20 °F to +120 °F AIR FILTER Dual Two-Stage Air Filters with Dust Evacuators for Clean Air Air Restriction Indicator INSTRUMENTATION Conveniently Located, Easy-to-Read Temperature and Pressure Gauge Oil Level Sight Glass SERVICEABILITY Easily Accessible Air Filters and Coalescers for Routine Service Independent Separator Tank for Ease of Maintenance Hinged–Top Roof and Access Panel for Maintenance and Adjustments Dust Evacuator for Easy Filter Maintenance SAFETY High-Pressure Shutdown Air Pressure Relief Safety Valve Automatic Blowdown on Shutdown Oil Fill Plug Safety Relief Minimum Pressure Valve CONVENIENCE Mounting Provisions on the Bottom of the Frame Heavy Duty Frame with Integral Forklift Tubes Powder Coated, Galvanneal Sheet Metal Enclosure Drive Hub Adapter for hydraulic motor SAE “D” face adapter Vanguard HP High Pressure Two Stage Rotary Screw Compressor Oil 300-500 PSI, 55 Gal, #275691-55 gal All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: The hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair recommends a dedicated pump and hydraulic circuit). Coming Soon
